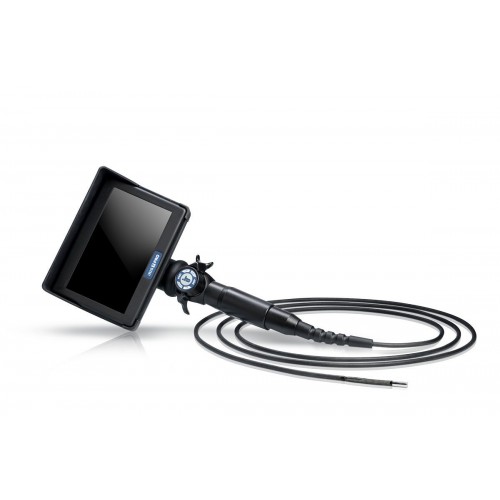

iRis 7 PRO Videoscope Inspection System

With 7" Touchscreen Display

Extremely compact dimensions; minimal weight and optimal handling are the outstanding attributes of the iRis DVR Videoscope System by IT Concepts. Inspections in remote or inaccessible areas of the harsh industrial environments now are feasible in no time and with an undreamed easiness. Only little efforts and iRis DVR is ready for use within seconds. You can move the distal end to any desired position fast, easy and precisely, thanks to the approved tactile 4-way articulation of up to 180°. Adjustable and interchangeable objectives with different fields of view, f-stops and working distances as well as the high brightness of the LED light source guarantee that you don’t miss any detail on the 7” high resolution TFT Touch Display, running with EIOS. The integrated, changeable and rechargeable high power batteries assure 2 hours of operating time. The balanced handle - designed for real -handed operation - allows long and effortless working. With diameters of 4.0mm, 6.0mm or 8.0mm and lengths from 1.5m to 7.5m the iRis DVR leaves nothing to be desired.

The iRIS 7 PRO Inspection System is a “ready-to-go” Video Kit which includes the iRIS PRO Inspection System specified by articulation, diameter and working length of the following list and all necessary basic accessories, as one battery and one Objective (except for 4mm), Charger and Neck-Holder. It comes in iRis Case (up to 5m length, IATA Standard) or iRis Caseplus (from 6m length, non IATA)

N.B. the optional i4 Side View Tip Adapter only fits on iRIS PRO 4mm with 60° Objective!

* All 4mm iTool DVR Systems are “fix-focus”. Referring to this fix-focus the delivery set of these scopes does not include any objective, lens box or lens tool.

List of available Systems:

Part No                    System                     Dia       Length       DoV

4mm
527-669-44015        iRis 7 PRO 44-15         4mm      1.5m       0° (90°)
527-669-44015/90   iRis 7 PRO 44-15/90    4mm      1.5m           0°
527-669-44020        iRis 7 PRO 44-20         4mm       2m         0° (90°)
527-669-44020/90   iRis 7 PRO 44-20/90    4mm       2m            0°
527-669-44030        iRis 7 PRO 44-30         4mm       3m        0° (90°)
527-669-44030/90   iRis 7 PRO 44-30/90    4mm       3m           0°
527-669-44040        iRis 7 PRO 44-40         4mm       4m        0° (90°)

6mm
527-669-46015        iRis 7 PRO 46-15         6mm     1.5m       0° (90°)
527-669-46020        iRis 7 PRO 46-20         6mm       2m        0° (90°)
527-669-46030        iRis 7 PRO 46-30         6mm       3m        0° (90°)
527-669-46040        iRis 7 PRO 46-40         6mm       4m        0° (90°)
527-669-46050        iRis 7 PRO 46-50         6mm       5m        0° (90°)
527-669-46060        iRis 7 PRO 46-60         6mm       6m        0° (90°)
527-669-46075        iRis 7 PRO 46-75         6mm      7.5m      0° (90°)

8mm
527-669-48015        iRis 7 PRO 48-15         8mm      1.5m      0° (90°)
527-669-48020        iRis 7 PRO 48-20         8mm        2m       0° (90°)
527-669-48030        iRis 7 PRO 48-30         8mm        3m       0° (90°)
527-669-48040        iRis 7 PRO 48-40         8mm        4m       0° (90°)
527-669-48050        iRis 7 PRO 48-50         8mm        5m       0° (90°)
527-669-48060        iRis 7 PRO 48-60         8mm        6m       0° (90°)
527-669-48075        iRis 7 PRO 48-75         8mm      7.5m      0° (90°)

Contents:

iRis DVR 7 PRO unit

Detacheable Lens

Rechargeable Battery

Charger

Neck Strap

iRis Carry Case

Technical Data

Display Size                     7" TFT Colour

Display Resolution           VGA (1024x600 pixels)

User Interface                  Direct Action keys/function keys/arrow key

Video Interface                USB

Primary Power                Rechargeable Li-ion battery (12v Adaptor optional accessory)

Video Format                  MPEG4 (.avi) with time & date

Image Format                 BMP (bmp), JPEG (.jpg), PNG (.png)

Storage                          SDHC Memory Card up to 32GB

Image Sensor                High Resolution Super HAD CCD

Zoom                             16 step digital zoom

Invert                              Horizontal & Vertical image inversion

Brightness/contrast/colour        Adjustable

Text Annotation               Built-in text overlay generator

Illumination                      High-power LED with faseroptic, High-powered LED on the tip.

Colour Temp                   6500k approx

Lamp Lifetime                 5000hrs approx

Tip Operating Temp        -13°F to 176°F (-25°C to 80°C) (284°F/140°C for less than 5 mins)

Waterproof Rating           Probe & Distal End up to 14.7psi (1 bar - 10.2m H2O)
