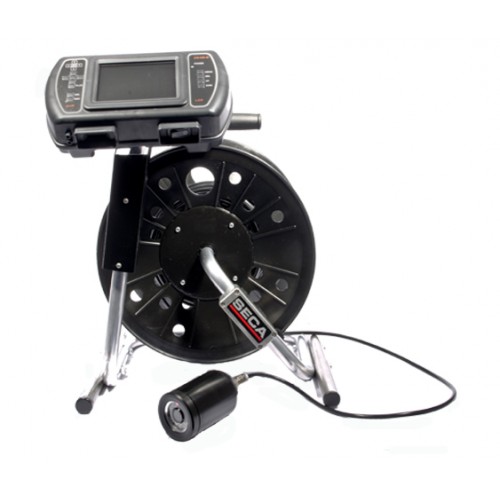

SECA Bore Hole / Drop Camera

For use in bore holes and ducts

A professional, compact and highly portable camera system for use in bore holes, ducts, pipes and any where where the user needs to drop a camera to view..
The system is supplied in a ruggedized plastic transit case for safe, secure transportation and weighs only 4.5kg. Supplied ready to work.
The system is supplied with flexible trailing cable on a easy carry reel. Lengths of 25m, 50m, 75m & 100m are available.
Operating temperature is -20°C to 55°C.
The camera head provides a wide 90º Field of View angle and has built in infra red illumination providing high resolution black and white images and outstanding picture quality.
Camera Head dimensions: 65mm dia. x 103mm length.
The DS100 monitor unit has an SD Card Recorder (32GB capacity) to enable recording of still images and video.
DS100 5" TFT Colour Monitor
Cable & Reel
1m Curly Cable
SD Card
Battery Charger
Hard Case
Available Options: (Select from drop down menu above)

Part No: 561-DS100DC - Borehole Camera 25m

Part No: 561-DS100DC50 - Borehole Camera 50m

Part No: 561-DS100DC75 - Borehole Camera 75m

Part No: 561-DS100DC100 - Borehole Camera 100m

Packing Dimensions:
  • Case - 50cm x 17cm x 43cm
  • Reel - 47cm x 33cm x 41cm
