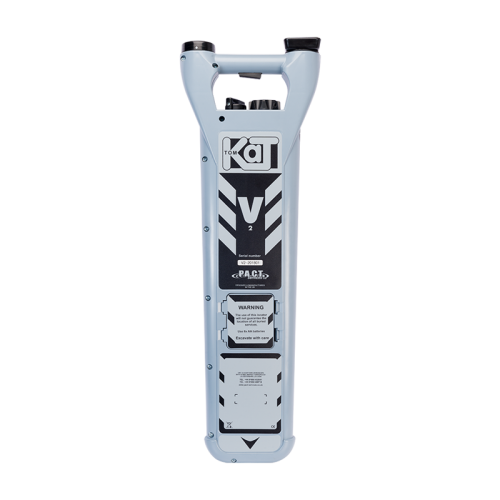

TOMKAT V2 Pipe & Cable Locator with Display

Locate cables and pipes buried to up to a depth of 3m

Visual and audible alerts

Three operating modes: Power, Radio and Genny

TOMKAT V2 Pipe and Cable Locator with Display Details

The TOMKAT V2 Pipe and Cable Locator with Display is similar to its sister product, the TOMKAT S2 Pipe and Cable Locator – No Display, in that it is able to locate cables and pipes buried to a depth of up to three metres. This model differs in regards to the inclusion of a digital, LED display. Via this display, the user can view a bar indicating the cable’s/pipe’s location, the selected mode, and the remaining battery life.

Like its sister product, the TOMKAT V2 Pipe and Cable Locator with Display is supplied with eight, fitted AA batteries which supply the instrument with up to fifty hours of power (when the tool is used intermittently). Similarly, it too is constructed from IP54, high-impact ABS and has been CE tested, making the TOMKAT V2 Pipe and Cable Locator suitable for use in rugged, outdoor environments.

The TOMKAT V2 Pipe and Cable Locator with Display also includes a waterproof speaker that outputs an audible alert when pipes and cables are located. It has a location accuracy of ±10% of the depth and, depending on the selected mode and the condition of the ground, can locate cables and pipes that have buried to a depth of up to three metres. For further information, please see the following table.

Mode                  Depth of Detection (Good Ground Conditions)              Depth of Detection (Poor Ground Conditions)

Power                                   3m                                                                                  2m

Radio                                    2m                                                                                  1m

Generator (Genny)              3m                                                                                   2m

As indicated in the table above, the TOMKAT V2 Pipe and Cable Locator is equipped with the following three modes:

Power Mode: locate cables carrying a detectable signal

Radio Mode: locate re-radiated radio signals

Generator (Genny) Mode: locate conductors carrying a signal supplied by the signal generator

In addition to this, the TOMKAT V2 Pipe and Cable Locator includes a sensitivity control that can be used to identify the precise location of buried conductors.

The TOMKAT V2 Pipe and Cable Locator with Display is a comprehensive, versatile and durable instrument that can be used to locate a variety of buried pipes and cables simply, easily and accurately.

TOMKAT V2 Pipe and Cable Locator with Display Key Features

• Locate cables and pipes buried to a depth of up to three metres
• Includes a digital, LED display
• View a bar indicating the cable’s/ pipe’s location, the selected mode and the remaining battery life via the display
• Supplied with eight, fitted AA batteries
• When used intermittently these batteries can supply up to fifty hours of power
• Constructed from IP54, high-impact ABS
• CE tested
• Suitable for use in rugged, outdoor environments
• Waterproof speaker outputs an audible alert when pipes and cables are located
• Location accuracy of ±10%
• Can locate pipes and cables buried to a depth of up to 3m depending on the mode and the condition of the ground (see table above)
• Three modes of operation
• Power Mode: locate cables carrying a detectable signal
• Radio Mode: locate re-radiated radio signals
• Generator (Genny) Mode: locate conductors carrying a signal supplied by the signal generator
• Sensitivity control for identifying the precise location of buried conductors
• Comprehensive, versatile and durable instrument
• Can be used to locate a variety of buried pipes and cables simply, easily and accurately

What's Included

• TOMKAT V2 Pipe and Cable Locator with Display
•  8x AA Batteries – Fitted
