THE RRC1 Milling Robot

Introducing the RRC1 milling robot - the perfect solution for converting and maintaining the underground infrastructure!
Equipped with a full HD camera, you can now capture every detail of your workpiece with crystal-clear precision. With a range of 200-800 mm and a powerful electric motor with up to 2.5 kW of power, the RRC1 can handle any task with ease.
The RRC1's endless circling of the arm ensures smooth and seamless operation, while the rear view camera provides an additional layer of safety and control. With multi axis freedom of movement, this milling robot can easily manoeuvre around your workspace, making it the ideal choice for even the most complex projects.
What's more, the RRC1 boasts modular connectivity, allowing you to integrate it with other systems (such as high pressure cutting / cleaning) to create a highly efficient system. With its unbeatable combination of cutting-edge features and reliable performance, the RRC1 is the ultimate milling robot for leading innovators..

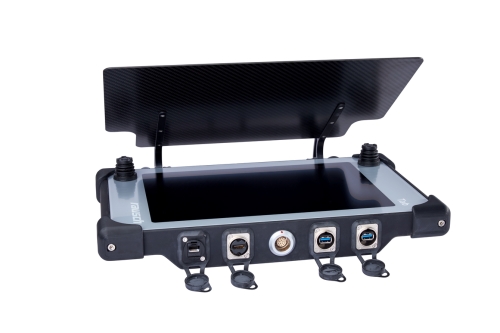

Rausch-Tab is the new mobile control unit for Omicron push and drive, Cubix 300 and Elka 600. Thus, the solution for inspections of mainline sewers and house connections in Full HD. Easily detachable for office work. Multifunctional joysticks.

  • Daylight readable 12" Touch display
  • Integrated PC
  • Operating System: Windows 10
  • Robust Aluminium housing
  • Dimensions: 410 x 250mm
  • Degree of Protection: IP64

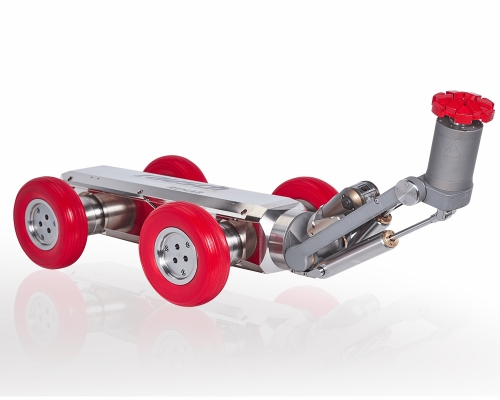

Milling Robot RRC1

  • Full HD Camera
  • 200-800mm
  • Electric Motor (power up to 2.5kW)
  • Endless circling of the arm
  • Rear view camera
  • 4 degrees of freedom
  • Modular connectivity

Electric Motor RREM1

  • Power up to 2.5 kW
  • Speed 8200 rpm
  • Central Lock
  • Extendable tool assembly

Camera RRV1 HD

  • Full HD Resolution
  • Endless panning of the head
  • Cleaning function using scrapers
  • Integrated surveying laser
  • Assembling and dismantling without tools


Cable Drum

  • Fully automatic cable drum
  • Cable up to 300m
  • Integrated observation monitor
  • Telescopic swivel arm with integrated chain winch
  • Work lights for manhole illumination
  • Easy to install in the vehicle


Wheelset 200-800mm

  • Granulate wheel set for the best traction in the pipe
  • Rubber wheel set for gentle driving
  • Solid rubber wheel set for use in large diameter pipes
  • Quick change using bayonet technology

Adaptation Top Hat System

  • Adaptation plate for top hat systems with connection block diameter :40
  • Fast assembly by means of a central lock
  • Good observation of the moving process

 Camera Extension

  • Telescopic camera extension
  • Height adjustable via ratchet function

Adaptation High Pressure Nozzle

  • Compatible with filch point speed 30
  • Optional with camera for better observation
  • Secure hose routing under trolley
  • Fast assembly by means of a central lock
  • Good observation of the moving process
