SECA Telescopic Pole Drain Inspection Camera System 4 Mtr

For quick drain inspections



The SECA Telescopic Pole Drain Camera System is a portable rugged inspection system designed for the Utilities and Emergency Services for looking into drains etc.

The DS100 Monitor can be Pole mounted or free-standing allowing the operator complete flexibility of movement whilst carrying out searches or surveillance.  The Battery pack provides up to 8 hours of constant use.

The Infra Red Camera provides clear high resolution colour images in daylight and switches to infra red in low light or down a drain to provide clear black and white images at distances up to 50ft.  The camera is mounted on a telescopic pole with a collapsed length of 1.2 mtrs and extends up to 4 Mtrs allowing surveillance without having to worry about working at heights regulations or moving obstacles.

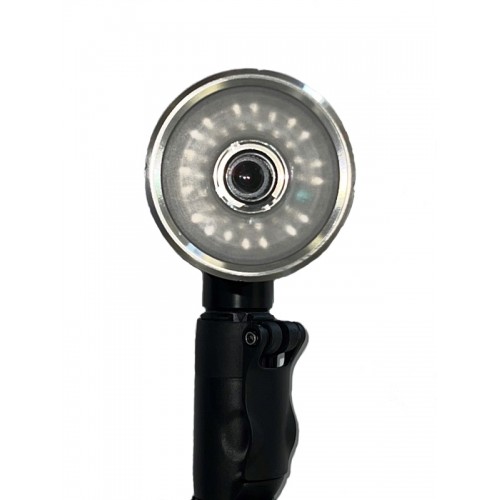

The camera head is fitted with a unique friction joint allowing the head to be articulated between 0° and 240°.  Articulation can be achieved manually by adjusting the camera head against the friction joint to the desired angle.  This allows the camera to be used for drain inspections and, if required, overhead inpections with just a quick flip over of the camera head.

The monitor has an SD Card slot for capturing Video and Still Images for evidentiary use. The system comes complete with an SD Card and will take a maximum of 32GB card.

Camera Field of View - 90º

The kit is packed in a rugged shoulder bag and hard case for easy transportation and deployment.

Typical Applications:

Utilities - Man Hole/Drain Inspection before descending or deploying fall arrest gear.  Site and height inspections can be carried out from ground level.

Emergency Services - Collapsed Building Inspection and safety checks.

Contents:

5 TFT Colour Monitor

1-5m Curly Cable

4m Telescopic Camera Pole

SD Card

Battery Charger 12V 230Vac 50Hz UK3 Pin

Hard Case

Technical Data:

Camera Head and Telescopic Pole

Image Sensor 1/3" PAL

Resolution 420 TVL

Camera head Diameter 65mm

Sensitivity 0.0 Lux

Light Source 850mm LED's

Camera Working Temperature -10 to +55°C

Pole length

                    Collapsed 1.2 Mtr

                    Extended 4.0 Mtr

Telescopic Pole

Display 5" Screen Size Colour TFT-LCD

Resolution 640 (H) x RGB x 480 (V)

Battery Lithium 11.1V 4400maH

Battery Charge Time 4.5 Hours

Battery Use (on Camera) 8 Hours

Waterproof to IP68

Weight Complete System 7kgs (Camera & Pole 3.5Kgs)

Model 561-PC4/A

Packing Dimensions:

Case - 50cm x 17cm x 43cm

Pole - 1470cm x 15cm x 11cm
